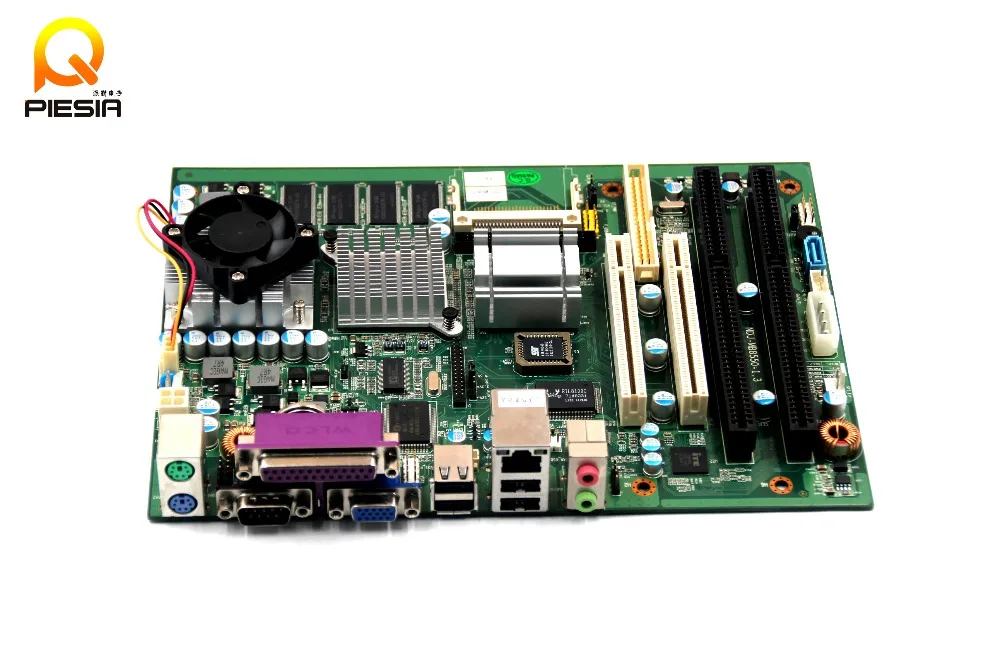

2017 Industrial Motherboard ISA Slot Motherboard

Introduction

IA-855is the low consumption 12v Power board With Intel 855GM Chipset Main features as follow:

1.1 Main Specifications:

1.1.1 CPU:Celeron M or Pentium M FPGA479 or Onboard CPU

1.1.2 Ram: onboard 512MB or 256MB

1.1.3 North bridge adopter Intel 855GM/852GM,South Bridge: ICH4M/ICH4

1.1.4 Chipset with integrated VGA Card(CRT DB15 connector )

1.1.5 Support CF,IDE-44 IDE-40SATA serial Port Storage.

1.1.6 Support 2*RS232 Com

1.1.7 Support1*100M LAN

1.1.8 Support 6* USB Port

1.1.9 Support AC97

1.1.10 Support parallel Port

1.1.11 SupportPS/2

1.1.12 Support dual channel 24 bits LVDS panel

1.2 Power

Single input straight flow of power, DC12V (+/- 5%), can be used ATX power switch and automatic mode.
Input supply voltage directly affects the output of 12V board power supply, input voltage deviation large, threatening to take power hard drives and add-in card from the system board

1.3 Size

240 x 180 mm

1.4 Working Temperature :

Working Temperature -10 ~ +60

Storage Temperature -40 ~ +85

The Motherboard support Windows7/8 32bits/64bits OS /Liunx System/ X86System

The package:

Package

Retail sample (size)

Batch (size)

delivery details

Carton box (20pcs)

220*210*75mm

510*440*230mm

Within 3 days (sample order)

Carton box (30pcs)

220*210*75mm

620*400*190mm

7-25 days in a bulk

The kits includes: sata Cables/sata power cables/CD driver.
