2017 new Hdmi Extender ir over TCP/IP with Audio Extractor support 1080p cascade receivers HDMI extender ir by Rj45 UTP/STP

2017 new Hdmi Extender ir over TCP IP with Audio Extractor support 1080p cascade receivers HDMI
Cliquez pour voir les détails
100 % d'acheteurs ont apprécié ce produit!
Disponibilité: en stock
L'offre d'aujourd'hui Se termine par: 04:36:18
Prix:  113.39 € / piece
Prix de vente:  64.63 € / piece



45 jours argent retour 45 jours argent retour Retours acceptés si le produit n'est pas tel que décrit, l'acheteur paie l'expédition de retour; ou garder le produit et d'accord de remboursement avec le vendeur.
Livraison à temps Livraison à temps
Garanties: livraison à temps 60 jours

Share:

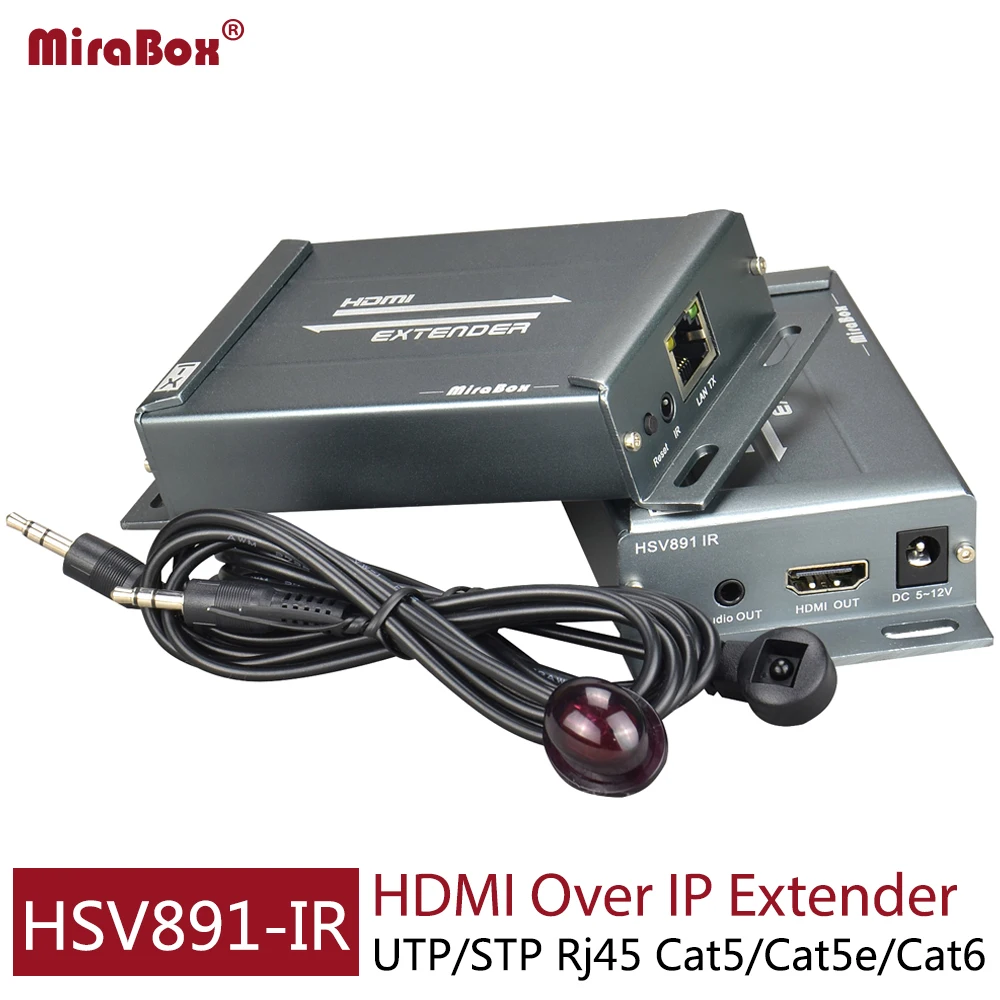

2017 new Hdmi Extender IR over TCP/IP with Audio Extractor support 1080p cascade Receivers HDMI extender IR by Rj45 UTP/STP This price is for a pair HSV891-IR HDMI Extender (1 TX 1 RX). And this product support 1 Sender to maximum 253 Receiver !!! Buy more Receiver: ​

Noted:

1. COST-EFFECTIVE SOLUTION- Extend HDMI audio/video signals over a cost effective CAT5/5e/6/6e cable up to 525ft, Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, run a CAT5/5e/6/6e cable from the Transmitter to Receiver, then connect your HDTV/projectors from a remote location to the Receiver with an HDMI cable; An HDMI cable is required and sold separately. 2. HDMI Splitter + Extender, Over Router or IP Switch, Support Multi-receiver upto 253pcs- The connection like: hdmi source—HSV891IR Sender—CAT5/5e/6/6e cable—switch—CAT5/5e/6/6e cable—Multi-HSV891 IR Receivers—Monitor, HDTV, Projector, or other HDMI screen. 3. Build-in 3.5mm R/L Audio Extractor- Solve Monitor Without Speaker / Poor Sound Quality; Resolution Supported- [email protected] / [email protected] / [email protected] / [email protected] / [email protected] / [email protected] / [email protected] / [email protected] / [email protected] 4. IR REMOTE CONTROL(20~60KHZ)- Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5/5e/6/6E cable for convenience 5. EASY INSTALLATION – Just Plug and Play, No driver required; Surface mountable metal housing with included brackets allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference * Note: A good quality CAT5/5e/6/6E cable is essential in delivering quality content; CAT6/6E is recommended for better performance

Introduction

This HDMI Extender over IP device not only can work as other normal HDMI extender by CAT5/6 cable up to maximum 150meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multi receivers. HSV891IR supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices. HSV891-IR HDMI Extender over IP also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket. HSV891-IR HDMI Extender over IP have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shielding.

Specification

Power Supply: DC 5~12V/1A IR Frequency Range: 20KHz~60KHz Working Temperature: -10°C ~ 60°C Link Connection: UTP/STP CAT5/5e/6 3.5mm Audio Output: 60mW THD<0.1% SNR 110dB Power Consumption: 3W(max)each Working Mode: *Point to Point mode *Broadcast mode( Point to MultiPoint) *Cascade mode Transfer Distance: Point to Point Mode: CAT5 100meters CAT5e 120meters CAT6 150meters
Cascade Mode: 20Km maximum Relative Humidity: 20% ~ 90% RH(Non-condensing) Dimensions: 123x64x25mm Weight: 110g each

Package contents:

1) Transmitter *1 &Receiver *1+IR Blaster*1+IR Receiver*1 2) User Manunal*1 3) Power adapter *2
