MSR605 magnetic card reader writer compatible MSRU206 MSRx6 MSR 606 MSR609 MSR009

![]() |
45 jours argent retour Retours acceptés si le produit n'est pas tel que décrit, l'acheteur paie l'expédition de retour; ou garder le produit et d'accord de remboursement avec le vendeur. |
---|---|
![]() |
Livraison à temps Garanties: livraison à temps 60 jours |
If you need other models reader writer: MSRX6,MSR606,MSR609,MSRU206
Pls contact us for final price!
MSR605 Magnetic Card Reader Writer Encoder
Package including
* MSR605 + * Software CD+ * Power adaptor +* USB cable directly+ * 1 Test Card
– CE, FCC, UL, cUL,ROHS certified
– One year warrenty
1. Description of msr605 card writer
Features
- Reading/Writing magnetic stripe card complied with ISO formats
- Read/Write High & Low Coercive (300~4000Oe)
- High/Low Coercivity encoding circuitry selectable on screen
- Program software for Windows 98/Me/XP/VISTA
- Programming software for various read/write performance
- Sequential write function, up to 12 digits (1 up)
- Manual Swipes to read and/or write card with USB output
- Writing and verifying data on single, dual, or triple track in one swipes
- +9VDC, 2A Max external power adapter attached
- Dimensions of 212(L) x 64(W) x 63(H) mm
Specification | |
Electrical | |
Power requirements | +9VDC +/- 5% |
Consumption | Typical 350mA Max. 600mA plus for each writing track |
Power supply | External switching power 9V/2A |
Communication | Standard USB cable |
Ripple | 50mVp-p or less |
Dielectric strength | 500 VDC for 1 minute |
Performance | |||
Read card | Track1 | Track2 | Track3 |
Bit per density | 210 bpi | 75/210bpi | 210 bpi |
Coercive force | Read/write/Erase 300-4000 oe Mag.card | ||
Card thickness | 0.76-1.2mm | ||
Read speed | STD card | Jitter +/-15% | Amp. 60% |
5-55ips | 5-50ips | 5-50ips | |
Write speed | 5-30ips | ||
Write jitter | Interval < +/- 10%, Sub-interval < +/- 12% | ||
Error rate | Read < 0.5% | ||
Write < 0.8% | |||
Head life | Min. 500K swipes for both read/write head |
Mechanical | |
Body material | ABS 94V-0 |
Weight | Approx. 1.4kg |
Dimension | 212L x 64W x 63H mm |
Swipes | Manual, single direction |
Environments | |
Operation | -10 to 55oC, 10 to 85% humidity |
Storage | -30 to 70oC, 10 to 90% humidity |
Safety Approval | |
Rating | FCC Class B, CE ClassB, UL, cUL,ROHS |

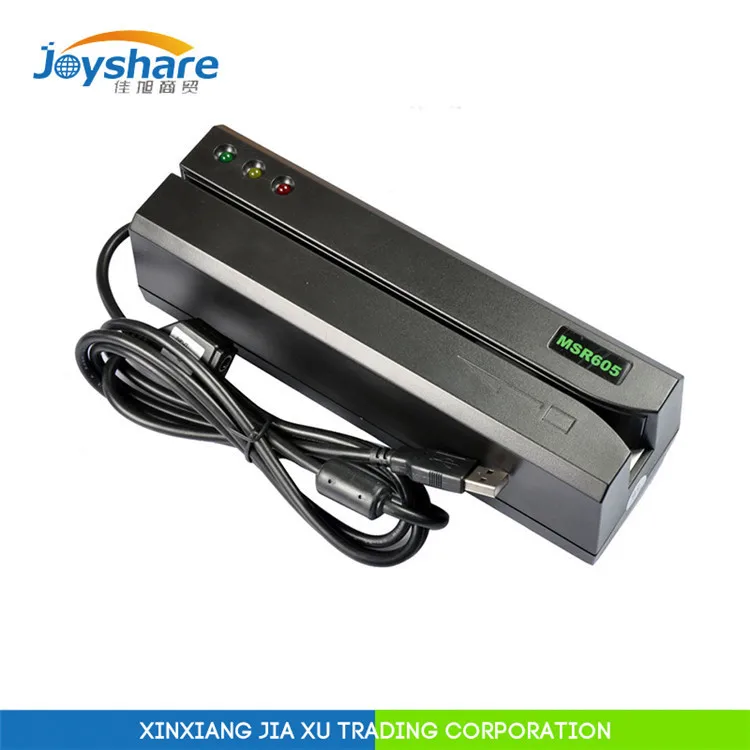

2. Pictures of msr605 card writer
